1 Metre Telescope

EOS designs and manufactures high-quality telescopes with exceptional technical performance for imaging, tracking and laser beam delivery.

Our telescopes are agile, highly accurate, reliable, robust and low maintenance. They seamlessly integrate with telescope enclosures, instruments, and control software. Equipped with remote diagnostic support and automated operation and are easily upgraded. Used as laser beam directors, they provide the accuracy required for reliable ground-to-space optical communications and satellite laser ranging.

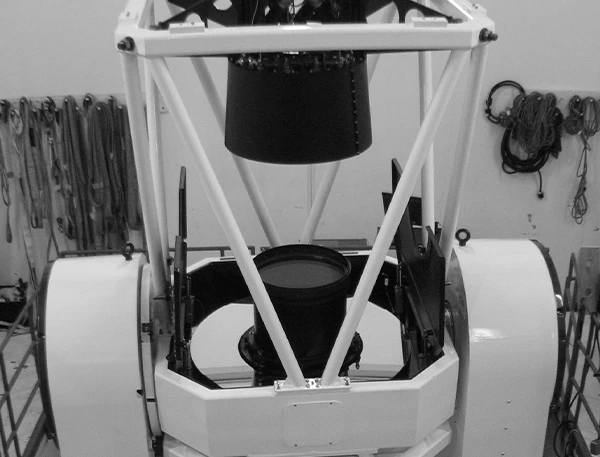

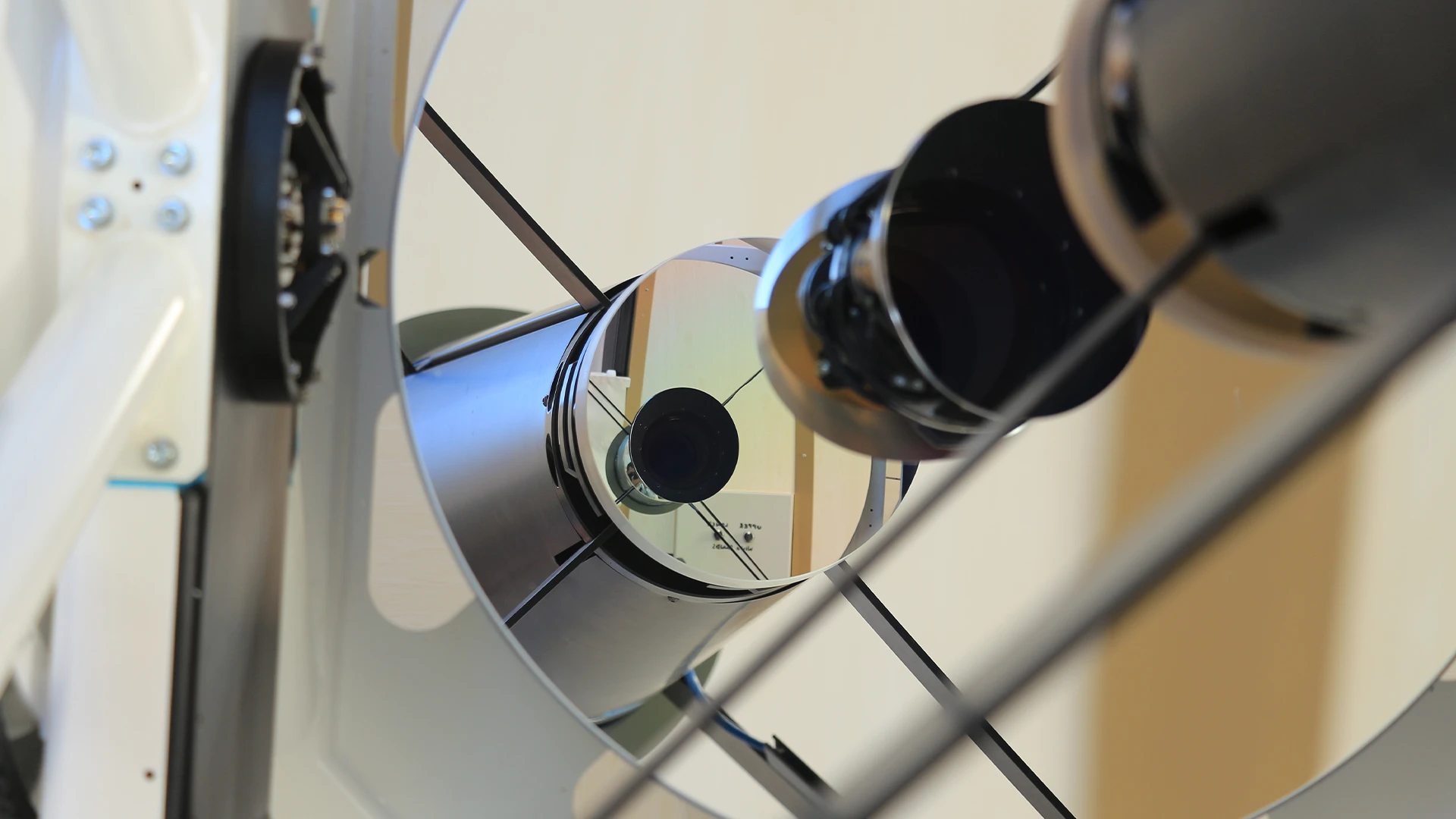

The 1 m telescope is compact and high-speed, fits domes larger than 4.5 m and can provide a large-diameter Coudé path. It is designed for high positioning accuracy and ultra-smooth tracking with large instrument payloads.

  • EOS 1m telescope
  • EOS 1m telescope
  • EOS 1m telescope

Telescope configuration

Nasmyth and Coudé

Aperture size

0.7–1.2 m

Primary mirror focal ratios

  • From f/1.5 to f/1.8
  • Optical and IR optimised designs
  • Passive mirror supports

System focal ratios

From f/8 to Mersenne

Mount

Compact alt-azimuth

Axis speeds

  • Axis speeds > 10 deg/s
  • On-axis direct drives and absolute encoders

Tracking jitter

< 0.25 arcsec RMS

Pointing accuracy

< 3 arcsec RMS

Operational features

  • Wide field guide scopes
  • Active collimation
  • Remote autonomous operation
  • Integrated dome and observatory systems
  • Wide field corrector systems
  • Fast tip-tilt secondary mirrors
  • Instrument derotators
  • On-board instrument processors
  • Automatic sky calibration software
  • Turnkey remote control observatories
